Overview of the Available ESR Spreader Rollers

In order to offer the ideal solution for any application, the ESR spreader rollers are available in various layouts. Type BR (Basic Roller) is the starting unit for the ESR web spreading system. Already these rolls can lead to optimal results in many areas of use. Extremely thin and light-weight materials, but also any materials of common thickness and weight, can be spread perfectly with type ST (Sensitive Treatment). If high speed is needed, type FP (Fast Performance) is the right choice for you. This version can do anything the type ST offers, but is able to operate at much higher speeds. All types are available in black EPDM rubber. Type ST100/130-SI and type FP120/150-SI are also available in FDA compliant silicone.

Info PDF

Type ST (Sensitive Treatment)

Type ST is the all-rounder with special properties. It offers best protection of any material with its individual spreading elements evenly distributed in circumference and length and the optimal coverage of the roller surface due to this. The optimal spreading result is achieved starting at a material thickness of 4 μm or a weight of 10 gr/m². Sensitive web edges are also guided securely, without folding. The bigger version of type ST ist also available in silicone in compliance with FDA regulations.

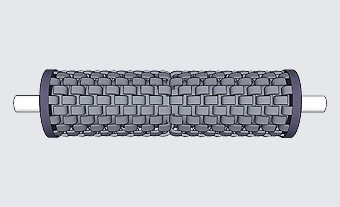

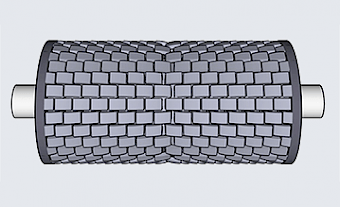

Drawing of spreader roller ESR ST 80/110

Type

ST 80/110

outer diameter110 mm
Layout spreading elementsoffset
ApplicationAll webs as of 4 μm or 10 gr/m²
Speedup to 500 m/min
Additional weight2.0 kg per metre
standard materialEPDM rubber (black) 60 +/- 5 Shore

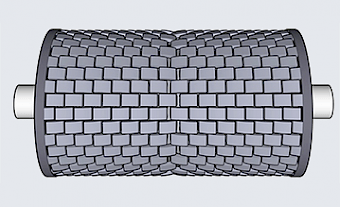

Drawing of spreader roller ESR ST 100/130

Type

ST 100/130

outer diameter130 mm
Layout spreading elementsoffset
ApplicationAll webs as of 4 μm or 10 gr/m²
Speedup to 500 m/min
Additional weight2.4 kg per metre
standard materialEPDM rubber (black) 60 +/- 5 Shore
Drawing of spreader roller ESR ST 100/130-SI

Type

ST 100/130-SI

outer diameter130 mm
Layout spreading elementsoffset
ApplicationAll webs as of 4 μm or 10 gr/m²
Speedup to 500 m/min
Additional weight2.4 kg per metre
FDA compliant material up to 190°Csilicone grey 60 +/- 5 Shore

Type BR (Basic Roller)

Type BR is suitable for use with films, foils, papers, nonwovens or textiles starting at a weight of 30 gr/m² or a material thickness starting at 30 μm.

Drawing of spreader roller ESR BR 80/110

Type

BR 80/110

outer diameter110 mm
Layout spreading elementslinear
ApplicationAll webs as of 30 μm or 30 gr/m²
Speedup to 350 m/min
Additional weight2.0 kg per metre
standard materialEPDM black 60 +/-5 Shore

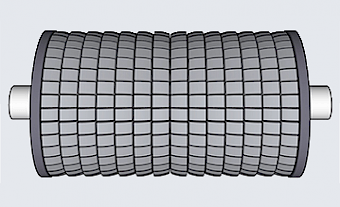

Drawing of spreader roller ESR BR 100/130

Type

BR 100/130

outer diameter130 mm
Layout spreading elementslinear
ApplicationAll webs as of 30 μm or 30 gr/m²
Speedup to 350 m/min
Additional weight2.4 kg per metre
standard materialEPDM black 60 +/-5 Shore
Drawing of spreader roller ESR BR 120/150

Type

BR 120/150

outer diameter150mm
Layout spreading elementslinear
ApplicationAll webs as of 30 μm or 30 gr/m²
Speedup to 350 m/min
Additional weight3.3 kg per metre
standard materialEPDM black 60 +/-5 Shore

Type FP (Fast Performance)

Type FP has the same properties as type ST. The specially shaped spreader elements make this type usable even at extremely high speeds of up to 800 m/min. The roller is available in EPDM rubber and FDA compliant silicone.

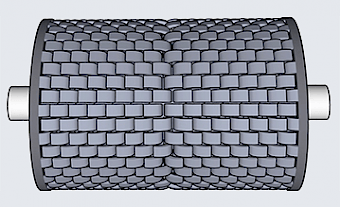

Drawing of spreader roller ESR FP 120/150

Type

FP 120/150

outer diameter150 mm
Layout spreading elementsoffset
Applicationall web as of 4 μm or 10 gr/m²
Speedup to 800 m/min
Additional weight3.3 kg per metre
standard materialEPDM rubber (black) 60 +/- 5 Shore

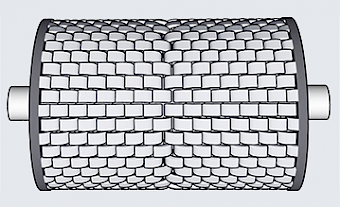

Drawing of spreader roller ESR FP 120/150-SI

Type

FP 120/150-SI

outer diameter150 mm
Layout spreading elementsoffset
Applicationall web as of 4 μm or 10 gr/m²
Speedup to 800 m/min
Additional weight3.3 kg per metre
FDA-compliant Material up to 190°CSilicone grey 60 +/-5 Shore
